Compact Solution for Small-Scale Sleeper Replacement

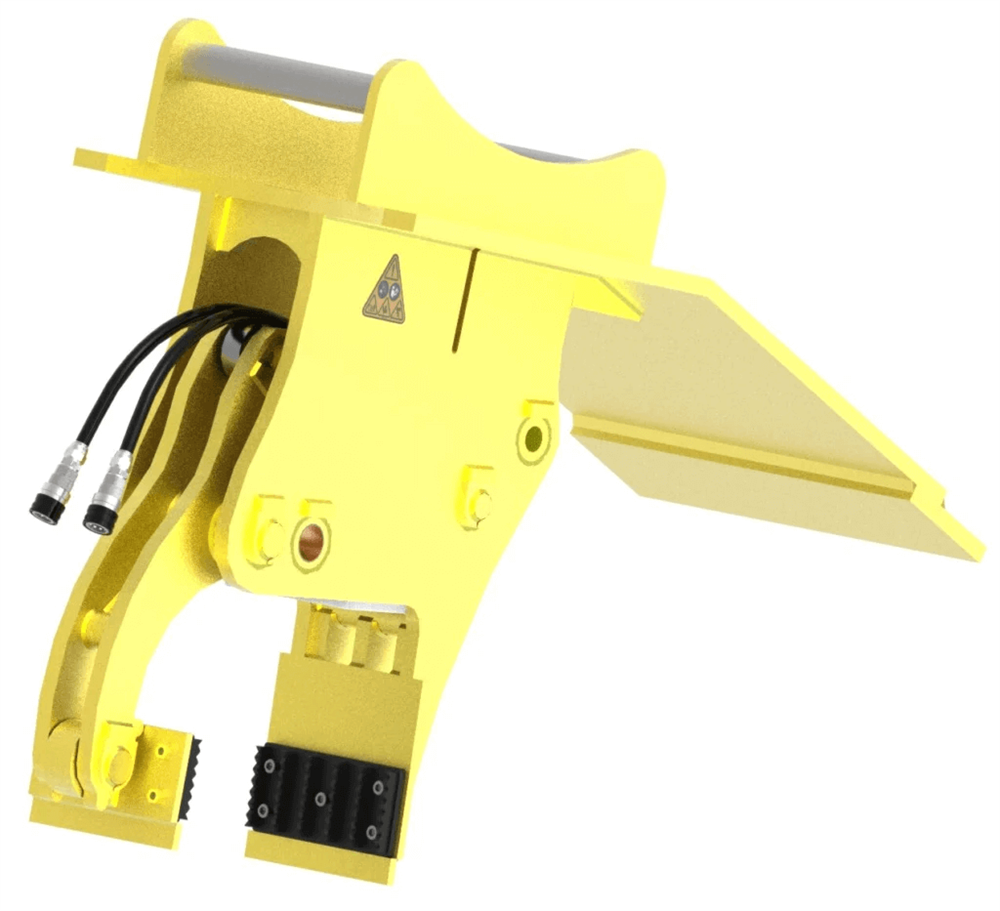

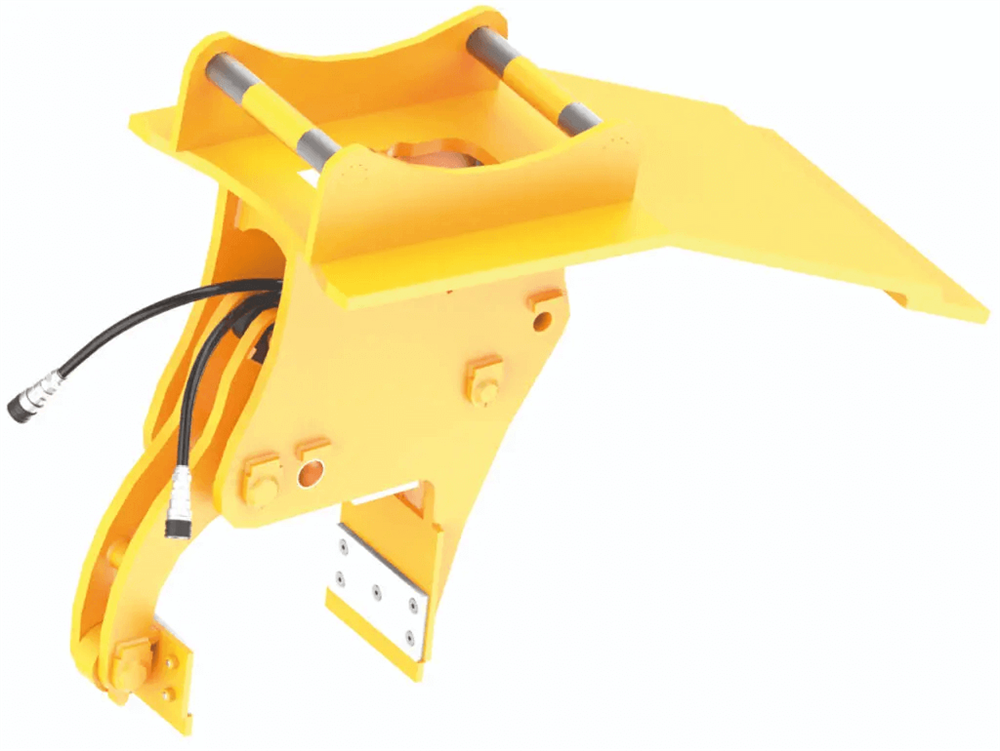

The Sleeper Grapple RBE is a lightweight, easy-to-use tool designed for efficient handling of sleepers during minor maintenance operations. Equipped with a ballast blade and angled bracket, it provides optimal working angle—especially useful in confined spaces such as switch areas.

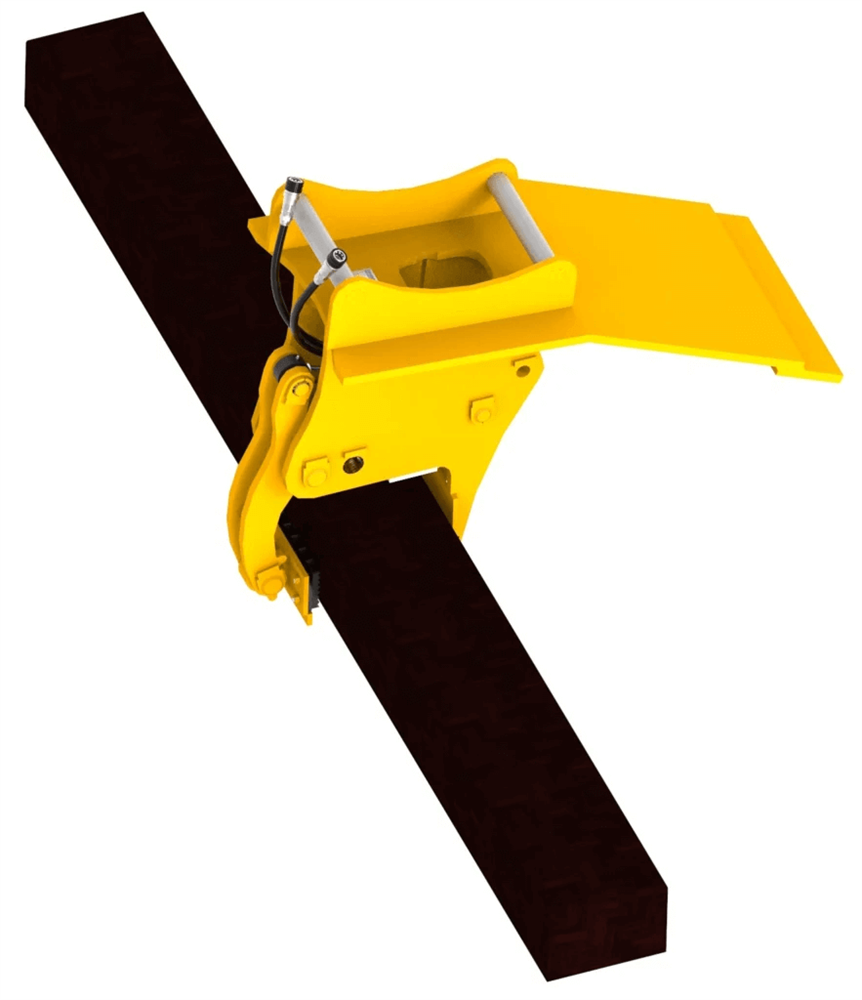

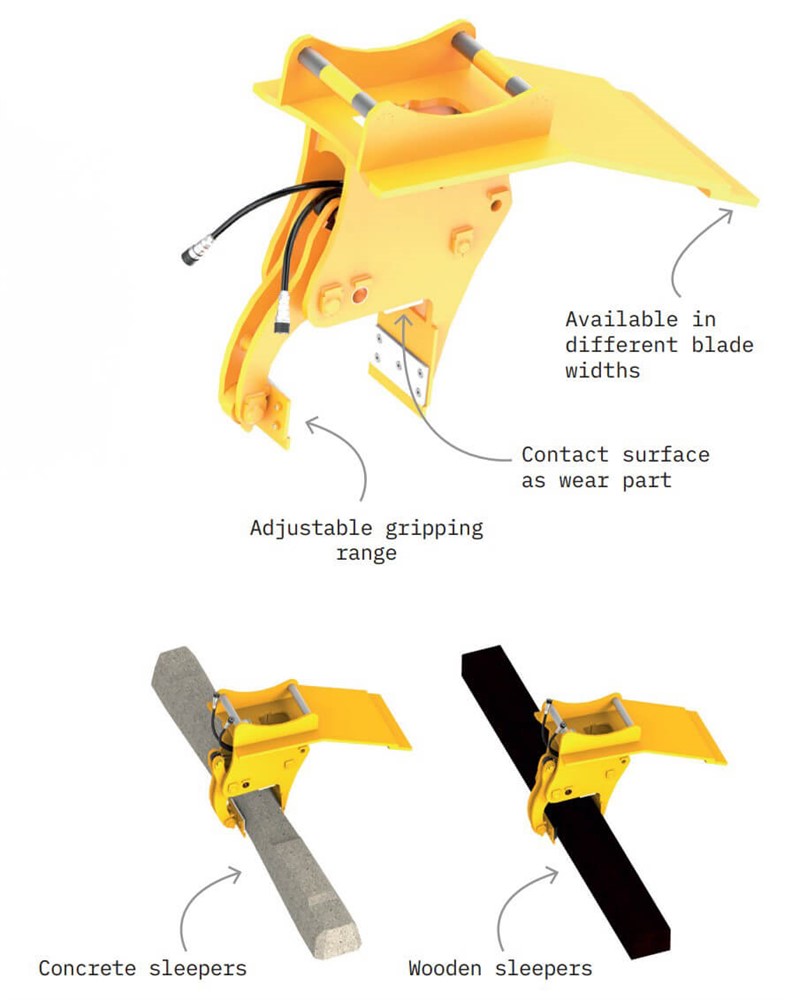

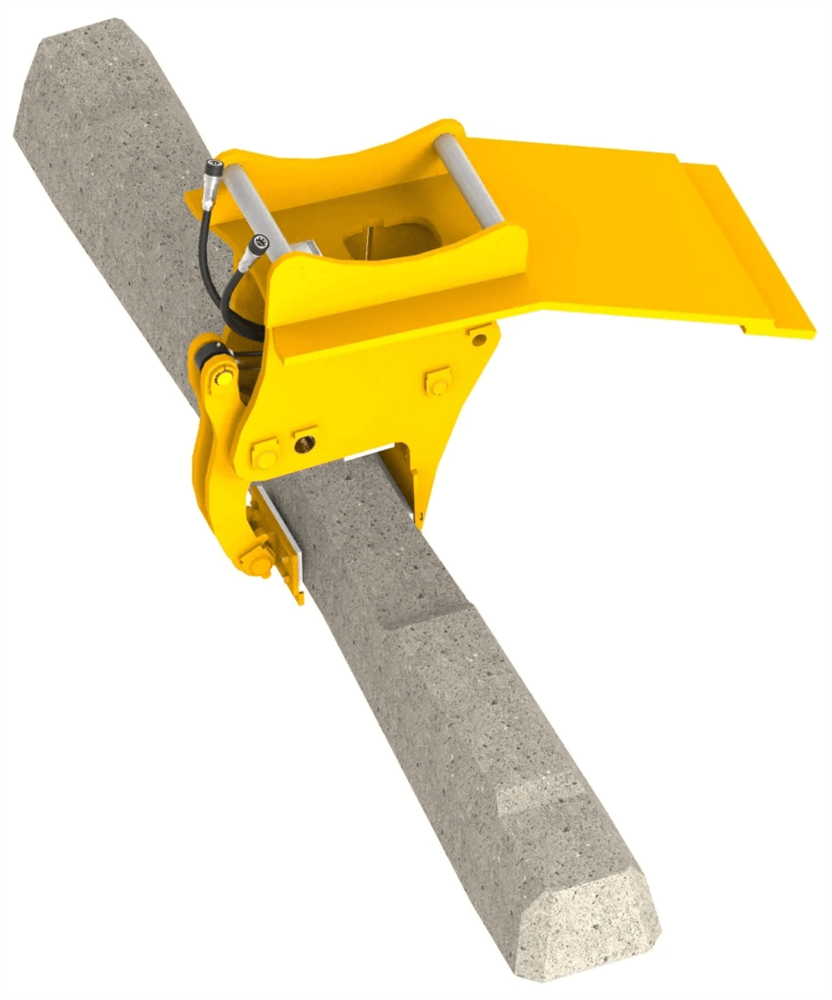

Standard features include replaceable grip plates for both concrete and wooden sleepers. The ballast blade is available in 300 mm or 500 mm widths, and the grapple is compatible with all major fully automatic quick coupler systems for greater flexibility.
Technical Data:
- Bracket: S45
- Opening: 350 mm
- Blade width (standard): 300 mm
- Weight: 110 kg
- Oil flow: 30–60 l/min (7.9–15.8 GPM)
- Max pressure: 200 bar (2900 psi)
Ideal for quick and precise sleeper handling where full replacement isn’t required. Built for efficiency, control, and reliability in the rail environment.
Available for different brackets.
